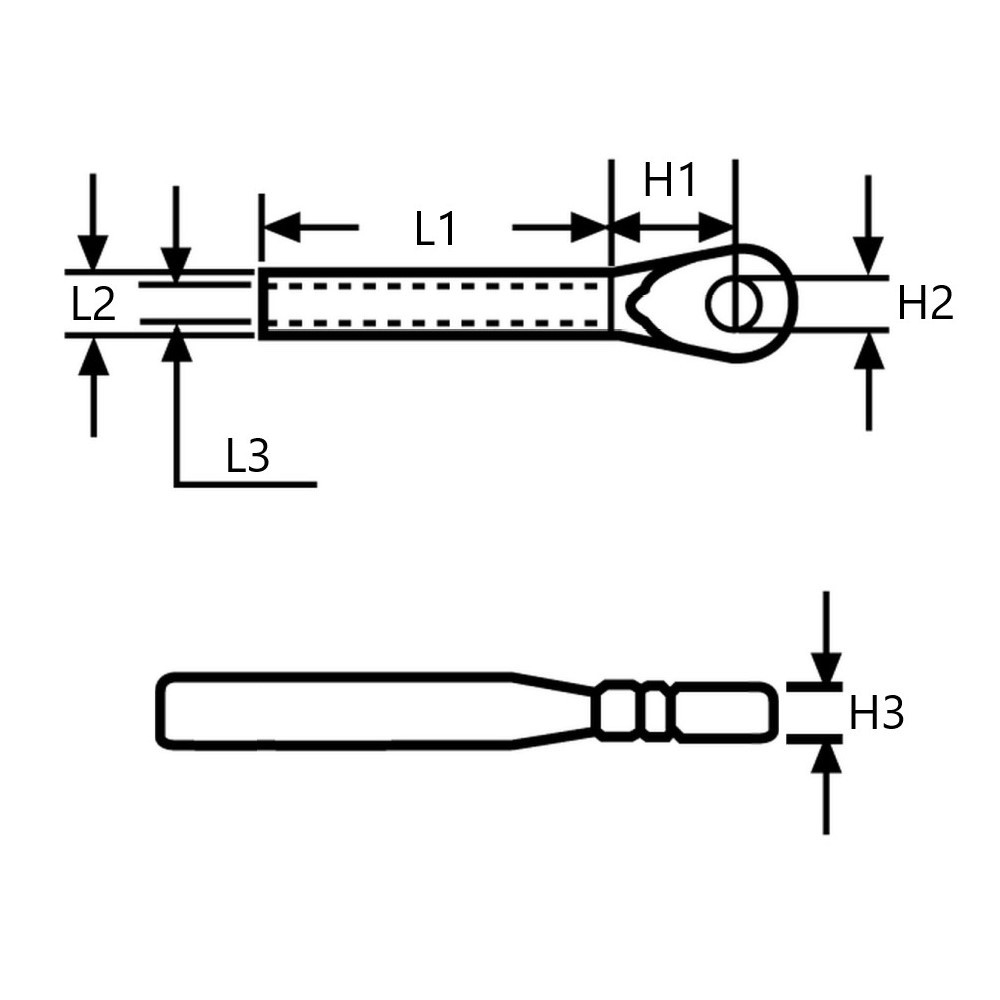

Swaging terminals eye in stainless steel 316.

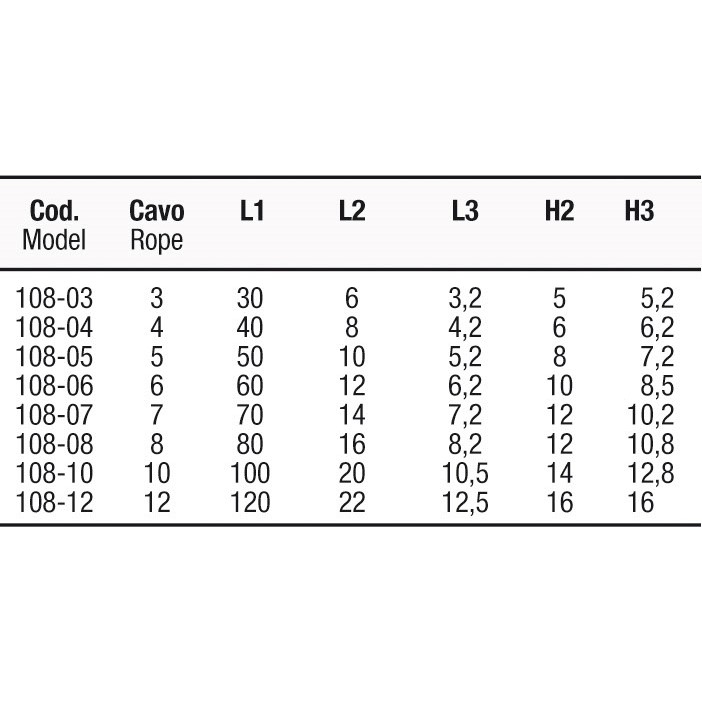

| Code | Rope (mm) | L1 (mm) | L2 (mm) | L3 (mm) | H2 (mm) | H3 (mm) |
|---|---|---|---|---|---|---|
| 108.03 | 3 | 30 | 6 | 3.2 | 5 | 5.2 |
| 108.04 | 4 | 40 | 8 | 4.2 | 6 | 6.2 |
| 108.05 | 5 | 50 | 10 | 5.2 | 8 | 7.2 |
| 108.06 | 6 | 60 | 12 | 6.2 | 10 | 8.5 |
| 108.07 | 7 | 70 | 14 | 7.2 | 12 | 10.2 |
| 108.08 | 8 | 80 | 16 | 8.2 | 12 | 10.8 |
| 108.10 | 10 | 100 | 20 | 10.5 | 14 | 12.8 |
| 108.12 | 12 | 120 | 22 | 12. | 16 | 16 |
